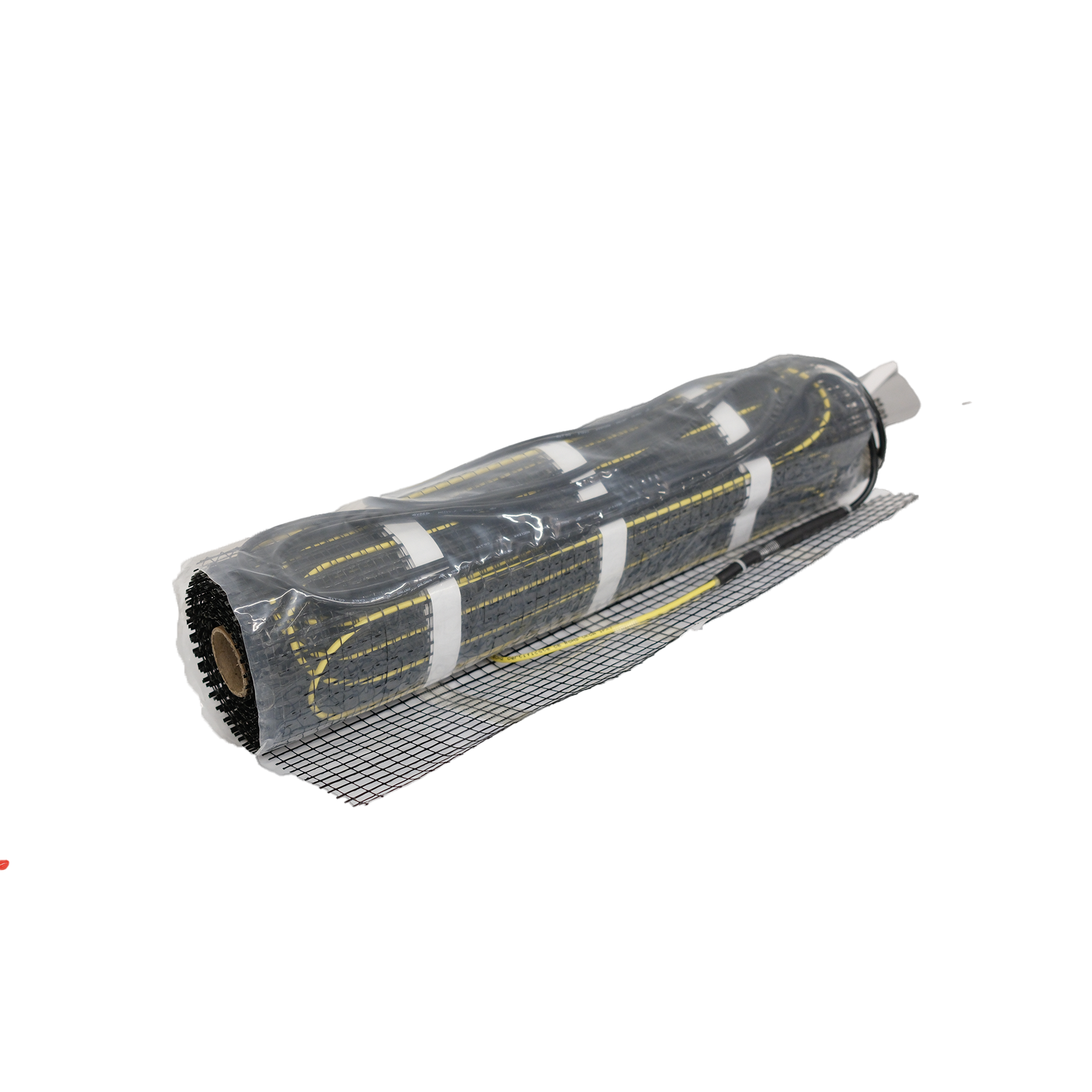

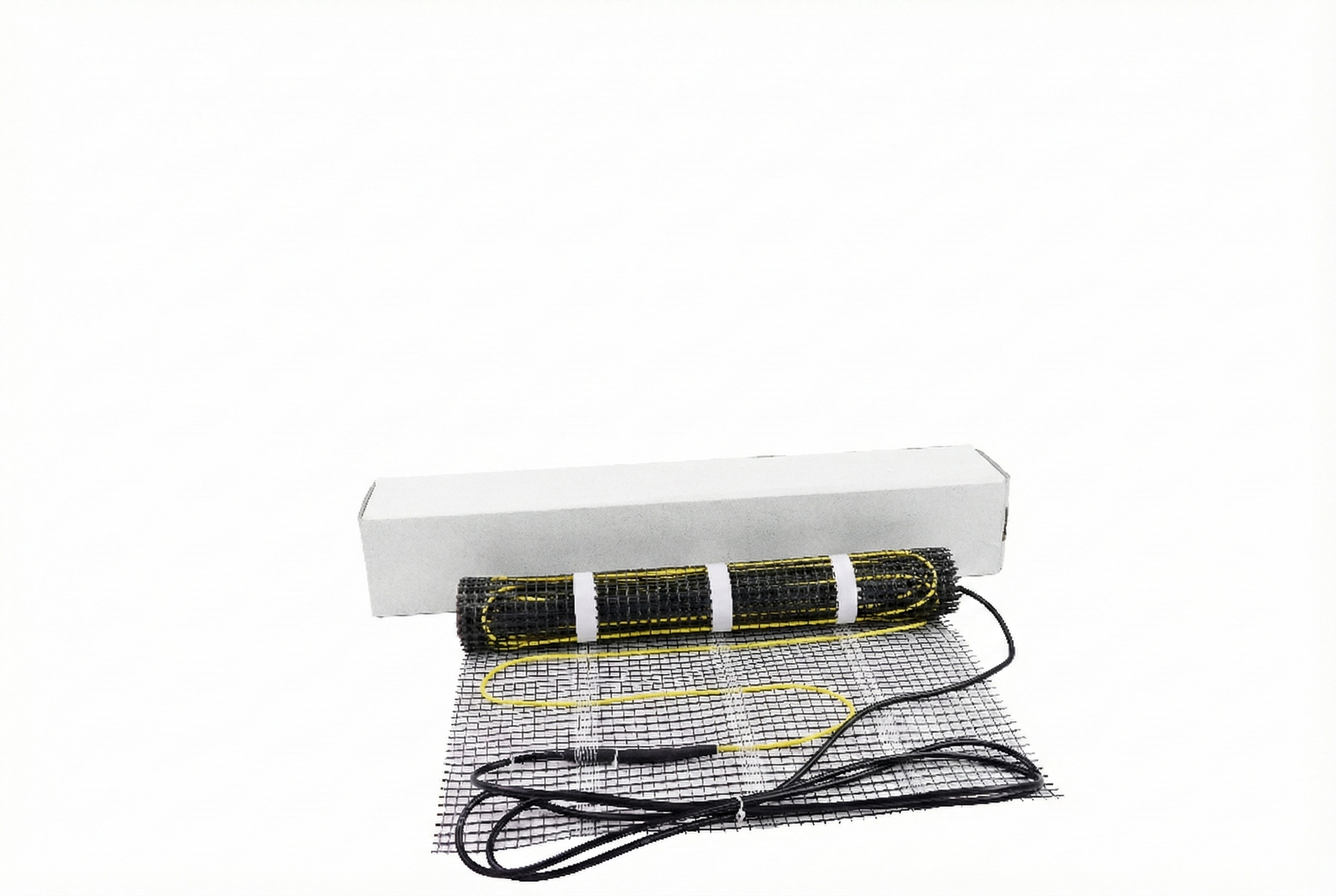

Tritherm Sticky Mat Electric Underfloor Heating System – 100W/m² & 150W/m²

The Tritherm Sticky Mat System is a fast, reliable, and easy-install electric underfloor heating solution designed for use directly beneath tiles or within a levelling compound for other floor finishes such as vinyl, carpet, timber, or laminate.
With its self-adhesive fibreglass mesh and pre-spaced 4 mm dual-core heating cable, the system installs quickly, stays perfectly flat, and ensures a smooth, snag-free tiling experience.

---

Easy, Clean Installation

The Sticky Mat uses a pressure-sensitive adhesive that securely binds the mat to the subfloor, preventing lifting or curling while still allowing repositioning if needed.
Ideal for regular-shaped rooms, the 500 mm wide mat can be rolled out in parallel runs for fast coverage.

Can be installed:

• Directly into tile adhesive, OR

• Covered with a levelling compound before applying vinyl, carpet, timber, or laminate flooring

---

Durable 4 mm Heating Cable

The system features a strong 4 mm dual-core cable, double-insulated with:

• Advanced fluoropolymer (FEP) inner insulation

• Durable PVC outer jacket

This makes it tough, safe, and easy to tile over, with long-lasting reliability.

---

Output Options: 100W/m² & 150W/m²

Choose the output to suit your project:

• 100W/m² — ideal for well-insulated rooms, gentle floor warming

• 150W/m² — perfect as a primary heat source in modern and older homes

Both options provide efficient, even heat distribution across the entire floor.

---

Recommended Floor Build-Up

1. Final floor finish

2. Tile adhesive / levelling compound

3. Sticky Mat heating system

4. Insulation backer board (highly recommended)

5. Flexible tile adhesive

6. Prepared subfloor

Using insulation boards significantly improves heat-up times and efficiency.

---

Key Features

• Available in 100W/m² and 150W/m² variants

• 4 mm dual-core heating cable for low profile installations

• Double-insulated with FEP + PVC for maximum durability

• 500 mm wide mats for fast installation in regular rooms

• Pressure-sensitive adhesive to keep mats flat and secure

• Self-adhesive mesh means no additional fixing strips required

• BEAB Approved, CE Marked, RoHS Compliant

• IPX7 waterproof rating

• Lifetime Installation Guarantee

• Suitable for: tiles, vinyl, carpet, laminate, timber (with levelling compound)

---

Technical Data (Sticky Mat)

• Operating Voltage: 220–240V, 50Hz

• IP Rating: IPX7

• Mat Width: 500 mm

• Mat Thickness: 4 mm

• Cable Thickness: 4 mm

• Output Rating: 100W/m² or 150W/m²

• Inner Insulation: FEP

• Outer Insulation: PVC

• Minimum Installation Temp: 5°C

• Connection: 3 m “cold tail” lead

• Approvals: BEAB, CE, RoHS

• Warranty: Lifetime installation guarantee

Full resistance table for each mat size is available above or in the datasheet.

---

Mat Sizes (100W/m² & 150W/m²)

Available in:
1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12 m²
For larger areas, multiple mats can be used together.

---

Compatible Thermostat – Tritherm Duratherm Programable Thermostat for Electric UFH

Add the optional thermostat to complete your installation.
Key features:

• 16A switching capacity (230V AC)

• Floor, air, or combined sensing modes

• Fully programmable – 7 days, 4 periods/day

• Adaptive start learning function

• 12/24-hour clock selectable

• Settings retained during power loss

• Holiday mode & manual override

• Stylish white faceplate with touch keys

• Includes 3 m floor probe

---

Suitable For:

The Sticky Mat is ideal for:

• Bathrooms

• Kitchens

• Living rooms

• Hallways

• Bedrooms

• Renovations & new builds

Compatible with:
Tiles, vinyl, carpet, laminate, timber, and most UFH-approved finishes.

---

Installation Guidance

• Can be installed by a competent DIYer

• Electrical connections must be made by a qualified electrician (as required by local regulations)

• Always test the mat with a multimeter before, during, and after installation

• Use insulation boards for best efficiency



Wattage	150W
Coverage	1m², 1.5m², 2m², 2.5m², 3m², 4m², 5m², 6m², 7m², 8m², 9m², 10m², 12m²
