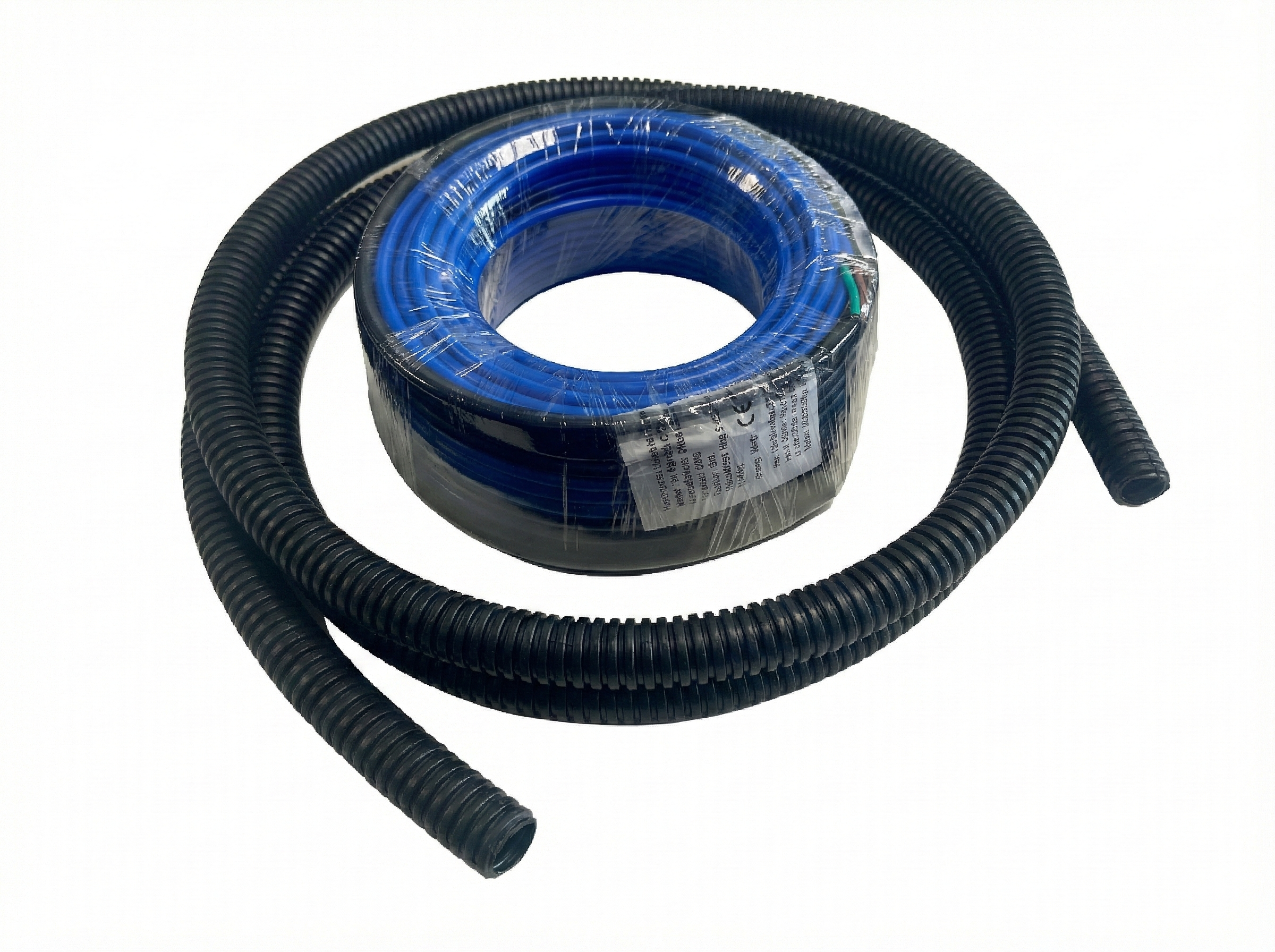

Tritherm Electric Underfloor Heating Cable System 10W/m
Price range: £37.00 through £202.43 excl VAT
Flexible 10W/m electric underfloor heating cable, designed for precise installation in irregular shaped rooms or bathrooms directly beneath tiles or stone.
Tritherm Electric Underfloor Heating Cable System 10W/m
The Tritherm Electric Underfloor Heating Cable System 10W/m is a flexible, loose wire heating solution designed for installation within the adhesive layer under tiles or within a levelling compound under other floor finishes. This system is ideal for small or irregularly shaped areas.
| Feature | Detail | Benefit |
| Heat Output |
10W/m (Output Rating) 4
|
Provides flexible, tailored heating for property requirements5555.
|
| Cable Versatility |
Loose cable (4 mm thickness) 6
|
Ideal for irregular rooms and easily installed around fixtures7.
|
| Cable Durability |
Double-insulated (FEP + PVC) 888
|
Exceptionally tough and easy to tile over99.
|
| Response Time |
Installed directly beneath the tile finish 1010
|
Exceptionally quick warm-up and cool-down11111111.
|
| Safety Approvals |
BEAB Approved and CE marked 12
|
Meets the highest safety standards for ultimate peace of mind13.
|
| Guarantee |
Lifetime Installation Guarantee 14
|
Reliability and long-term peace of mind. |
Flexibility for Complex Spaces
The Loose Wire System’s unique advantage is the ability to easily install the cable where mats cannot go.
- Irregular Rooms: It is ideal for irregular-shaped rooms, such as bathrooms, where the cable can be easily installed around fixtures.
- Variable Power: The variable spacing of the cable allows the heat output to be matched to your specific property requirements.
- Energy Saving: By warming up and cooling down faster, the system ensures the room is cooler when not in use, losing less heat and saving energy.
Note: For large, regularly shaped rooms, the Sticky Mat system offers a quick and precise installation alternative. For non-tiled floors requiring a dry construction, the Foil Heater System does not require a levelling compound.
Recommended Floor Build-Up
The system is installed within the adhesive or levelling compound layer. Using a coated insulation board is recommended for increased efficiency
| Component No. | Component Description |
| 1 |
Floor finish 23
|
| 2 |
Tile adhesive or levelling compound 24
|
| 3 |
Tape 25
|
| 4 |
Loose Wire 26
|
| 5 |
Coated Insulation Board 27
|
| 6 |
Flexible Tile Adhesive 28
|
| 7 |
Subfloor 29 |
Technical Specifications
The system features a 4 mm dual-core heating cable that is double-insulated with an advanced FEP inner layer and a durable PVC outer jacket.
| Detail | Specification |
| Operating Voltage |
220–240V, 50Hz 32
|
| Output Rating |
10W/m 33
|
| Cable Thickness |
4 mm 34
|
| IP Rating |
IPX7 35
|
| Max. Operating Temp |
$80^\circ\text{C}$ 36
|
| Min. Installation Temp |
$5^\circ\text{C}$ 37
|
| Connection |
3 m long “cold tail” connection 38 |
Compatible Thermostat – Tritherm Duratherm Programable Thermostat for Electric UFH
Add the optional thermostat to complete your installation.
Key features:
- 16A switching capacity (230V AC)
- Floor, air, or combined sensing modes
- Fully programmable – 7 days, 4 periods/day
- Adaptive start learning function
- 12/24-hour clock selectable
- Settings retained during power loss
- Holiday mode & manual override
- Stylish white faceplate with touch keys
- Includes 3 m floor probe
| Length | 5m, 10m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 100m, 120m, 140m, 160m |
|---|
