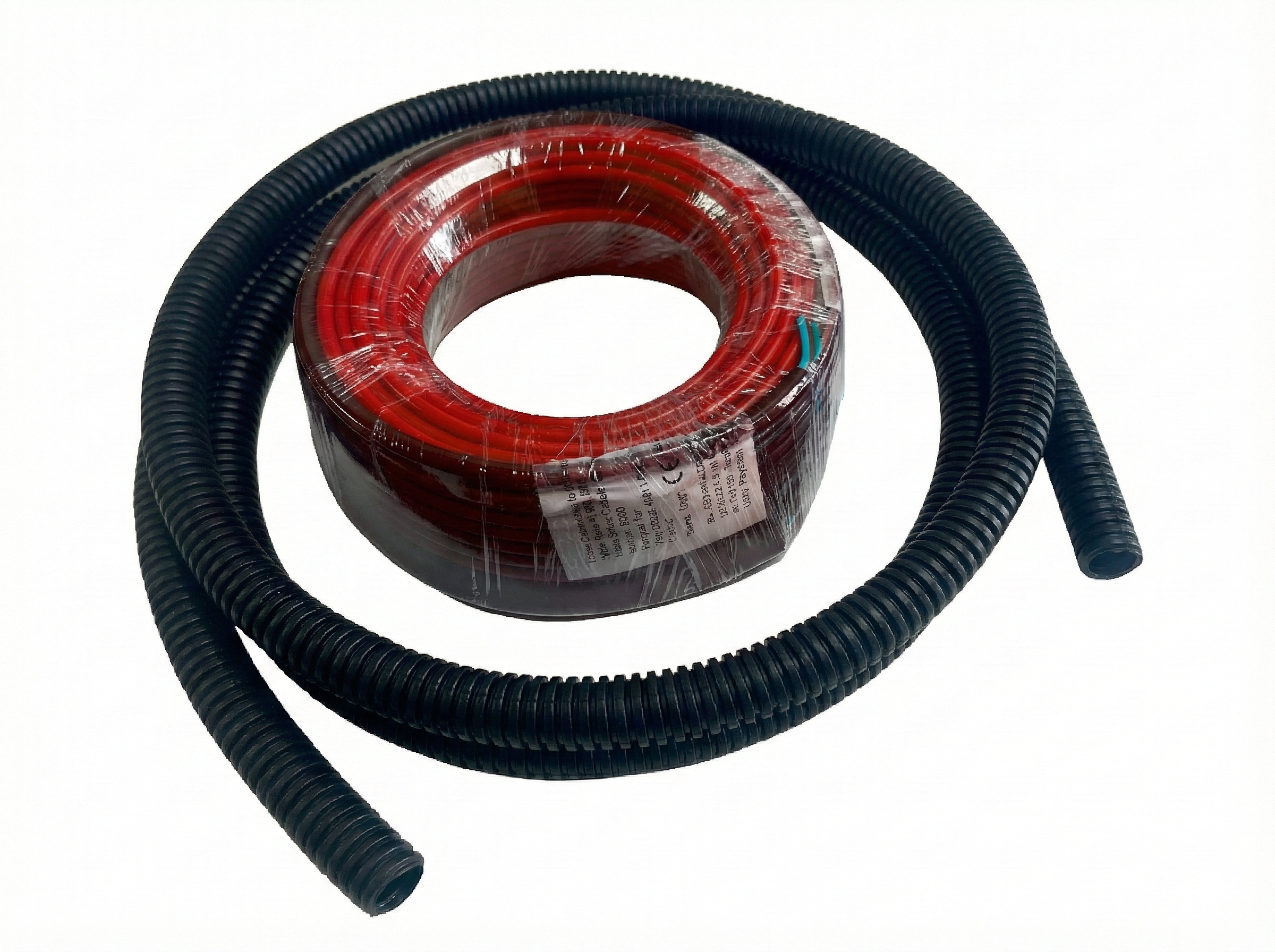

Tritherm Electric Underfloor Heating Cable System 20W/m

Tritherm Electric Underfloor Heating Cable System 20W/m (DWS 20)

The Tritherm Electric Underfloor Heating Cable System 20W/m is a high-output, flexible, loose wire heating solution designed for installation within the adhesive layer under tiles or within a levelling compound under other floor finishes. This system is ideal for small or irregularly shaped areas that require a higher heat output.

---

Key Product Features

Feature	Detail	Benefit
Heat Output	20W/m (Output Rating) 4	Higher output suitable for primary heating requirements55.
Cable Versatility	Loose cable (4 mm or 5 mm thickness) 6	Ideal for irregular rooms and easily installed around fixtures7777.
Cable Durability	Double-insulated (FEP + PVC) 888	Exceptionally tough and easy to tile over99.
Response Time	Installed directly beneath the tile finish 1010	Exceptionally quick warm-up and cool-down11.
Safety Approvals	BEAB Approved and CE marked 12	Meets the highest safety standards for ultimate peace of mind13.
Guarantee	Lifetime Installation Guarantee 14	Reliability and long-term peace of mind15.

---

Flexibility for Complex Spaces

The Loose Wire System’s unique advantage is the ability to easily install the cable where mats cannot go, providing customized heat output.

• Irregular Rooms: It is ideal for irregular-shaped rooms, such as bathrooms, where the cable can be easily installed around fixtures.

• Variable Power: The variable spacing of the cable allows the system power and heat output to be tailored to your property requirements.

• Energy Saving: By warming up and cooling down faster, before and after you use the room, the room is cooler when not in use, losing less heat and saving energy.

Note: For regularly shaped rooms, the Sticky Mat system offers a quicker and more precise installation alternative. Alternatively, for floor finishes other than tiles, the Foil Heater System utilizes a completely dry construction that does not require a levelling compound.

---

Recommended Floor Build-Up

The system is installed within the tile adhesive or levelling compound layer.

Component No.	Component Description
1	Floor finish 23
2	Tile adhesive or levelling compound 24
3	Tape 25
4	Loose Wire 26
5	Coated Insulation Board 27
6	Flexible Tile Adhesive 28
7	Subfloor 29

---

Technical Specifications

The system features a dual-core heating cable that is double-insulated with an advanced FEP inner layer and a durable PVC outer jacket.

Detail	Specification
Operating Voltage	220–240V, 50Hz 31
Output Rating	20W/m 32
Cable Thickness	4 mm or 5 mm 33
IP Rating	IPX7 34
Max. Operating Temp	$80^\circ\text{C}$ 35
Min. Installation Temp	$5^\circ\text{C}$ 36
Connection	3 m long “cold tail” connection 37

---

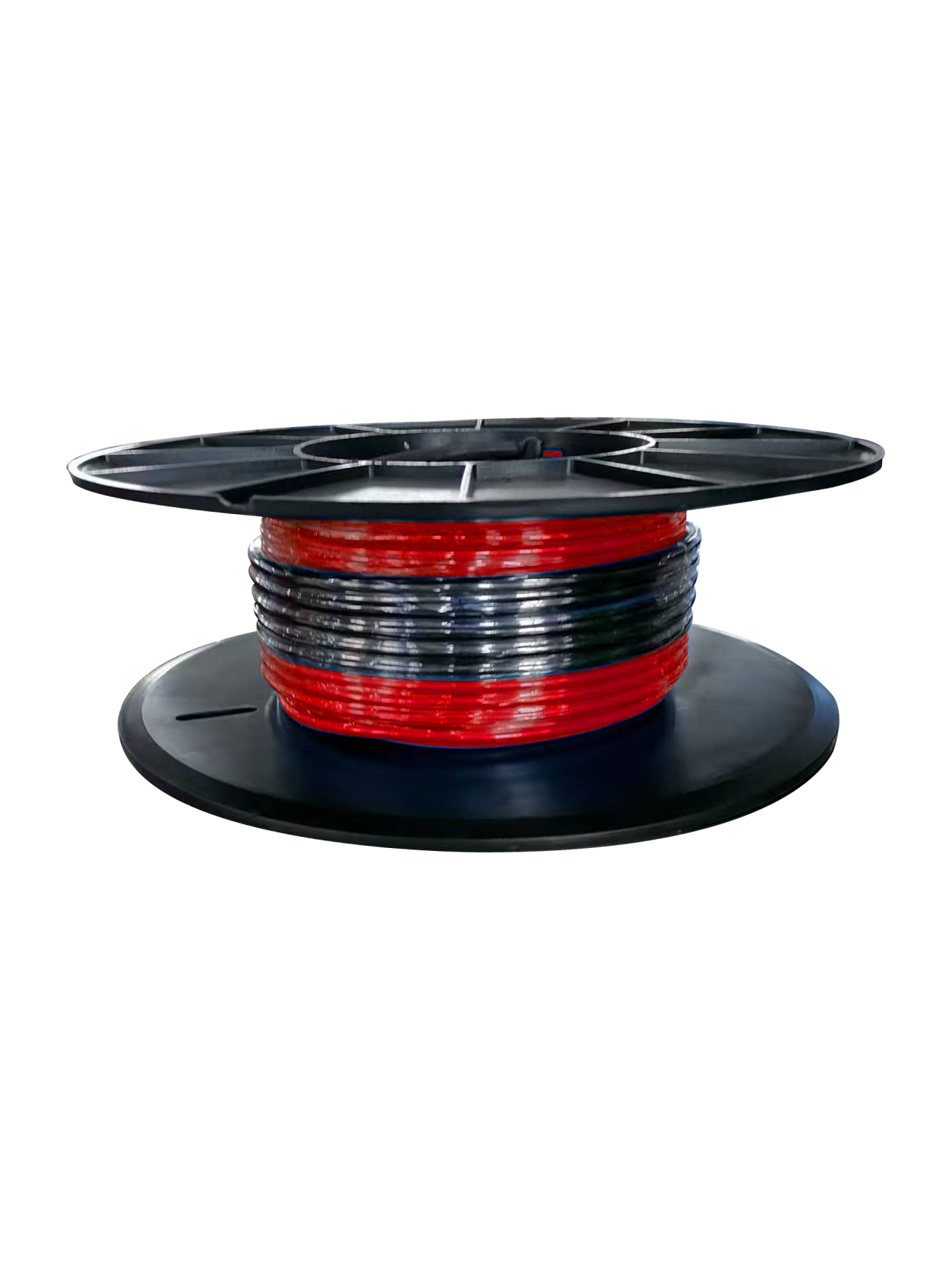

20W/m Cable Sizes and Resistance (RED Cable)

The 20W/m cable comes in various lengths and corresponding power outputs:

Product Code	Heater Length (m)	Power (W)	Load (A)	Resistance (Ω)
ZL-20CABLE010	10	200	0.87	264.50
ZL-20CABLE020	20	425	1.85	124.47
ZL-20CABLE030	30	650	2.83	81.38
ZL-20CABLE040	40	830	3.61	63.73
ZL-20CABLE050	50	970	4.22	54.54
ZL-20CABLE060	60	1270	5.52	41.65
ZL-20CABLE070	70	1410	6.13	37.52
ZL-20CABLE080	80	1620	7.04	32.65
ZL-20CABLE090	90	1890	8.22	27.99
ZL-20CABLE100	100	1980	8.61	26.72
ZL-20CABLE125	125	2530	11.00	20.91

---

Compatible Thermostat – Tritherm Duratherm Programable Thermostat for Electric UFH

Length	10m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 125m
